Frame: 100% 1020 Hi-Ten
Top Tube: 20.5″
Chain Stay: 13.2″
Head Tube: 75°
Seat Tube: 71°
Stand Over: 8.5″
BB Height: 11.6″
Brake Mounts: Welded
Fork: 100% 1020 Hi-Ten – 30mm Offset
Bars: 100% 1020 Hi-Ten – 2pc 9.0″
Grips: Shadow RANT H.A.B.D.
Bar Ends: Rant Nylon
Headset: Rant 1-1/8″ Threadless
Stem: Rant Trill Top Load
Front Rim: Rant Squad 36H Alloy Single Wall
Rear Rim: Rant Squad 36H Alloy Single Wall
Front Hub: 3/8″ Loose Alloy
Rear Hub: 14mm Semi-Sealed Cassette
Tires: Rant Squad 20″ x 2.35″

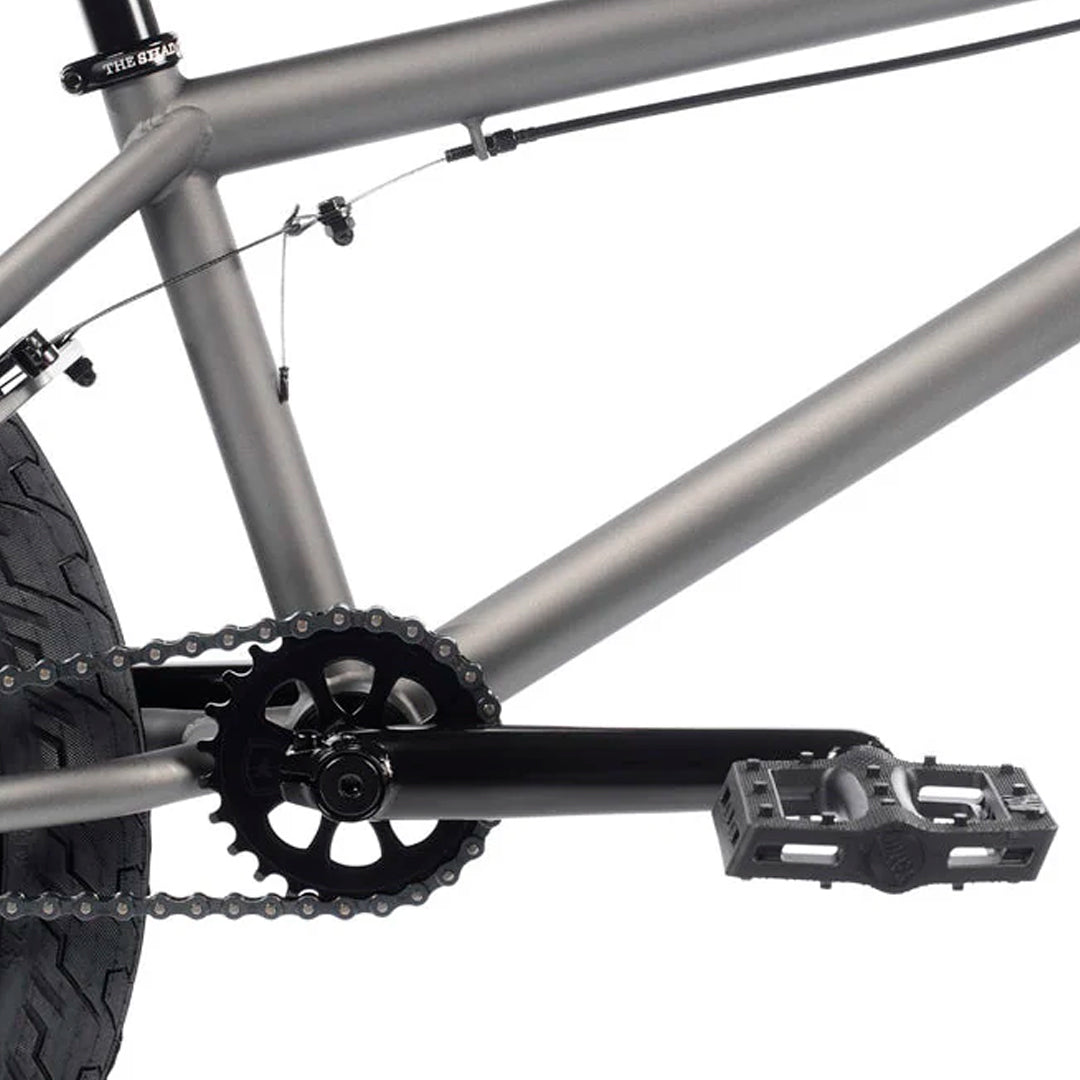

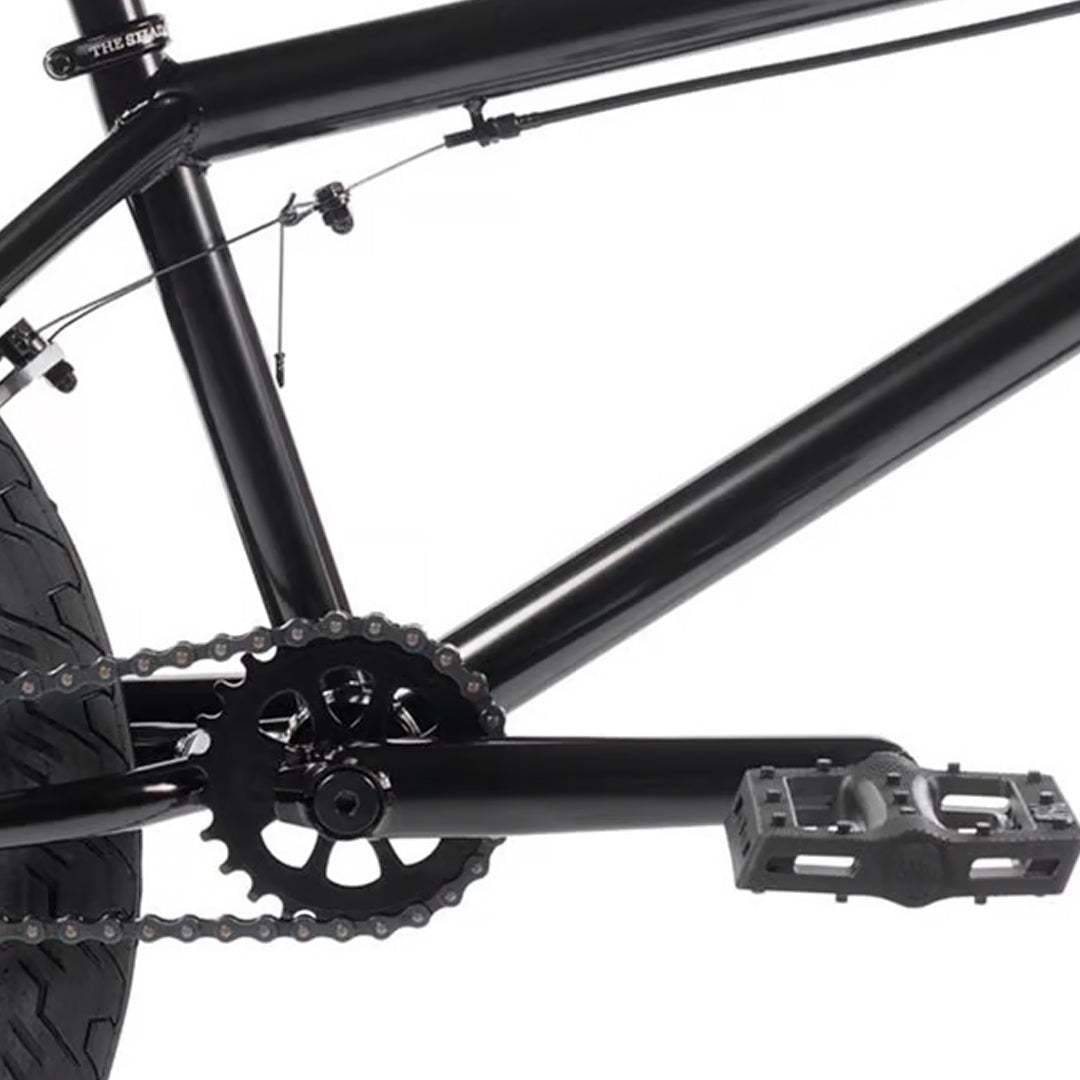

Cranks: Chromoly 8 Spline 3pc 170mm
Bottom Bracket: Sealed Mid
Sprocket: Subrosa Petal Steel
Gearing: 25 – 9
Chain: Rant Max 410
Pedals: Rant Trill Plastic

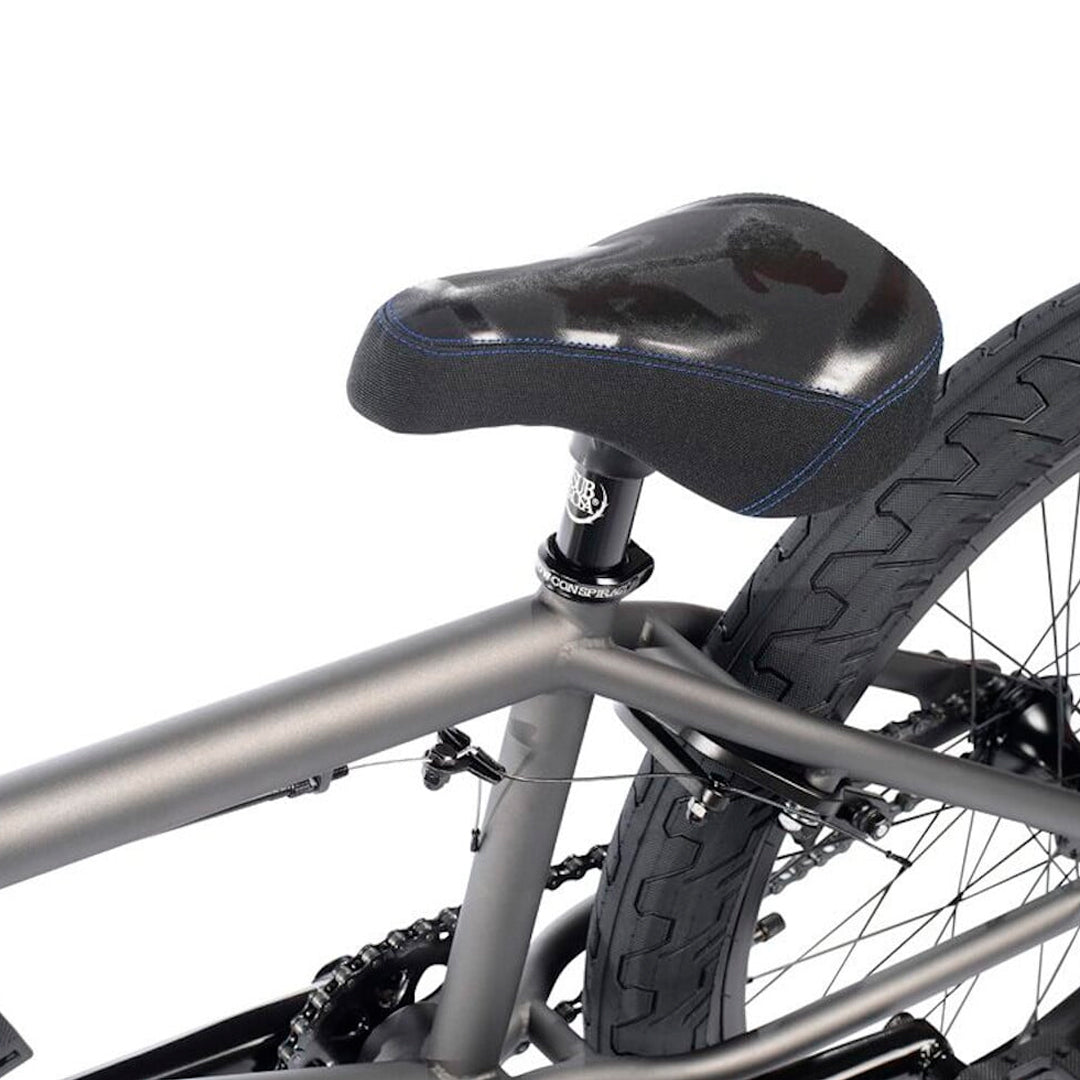

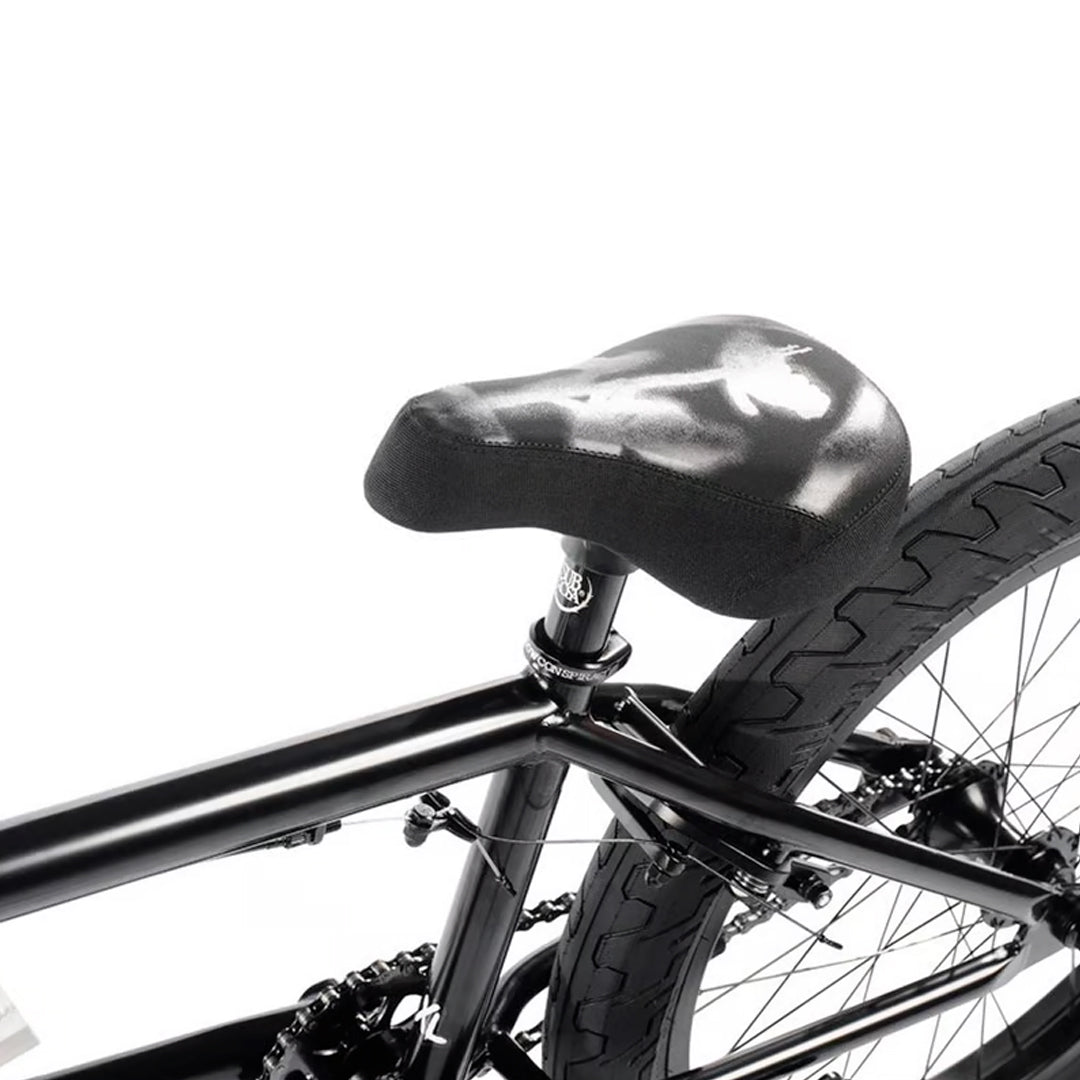

Seat: Subrosa Mid 1pc Combo
Seat Clamp: Shadow Alfred

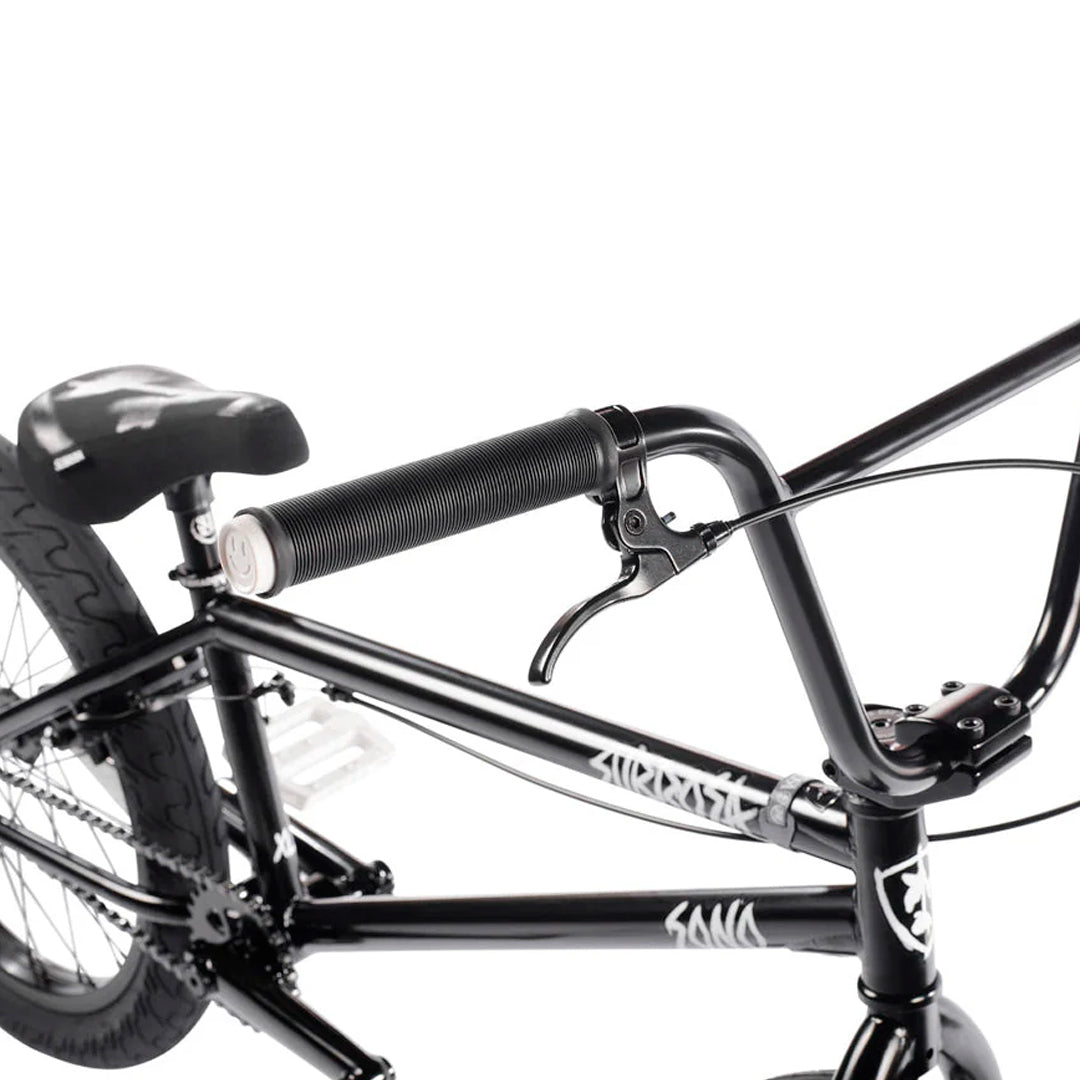

Brake Lever: Alloy 2 Finger
Brakes: Rant Spring Brakes V2
Weight: 12 kg = 26.5 lbs
