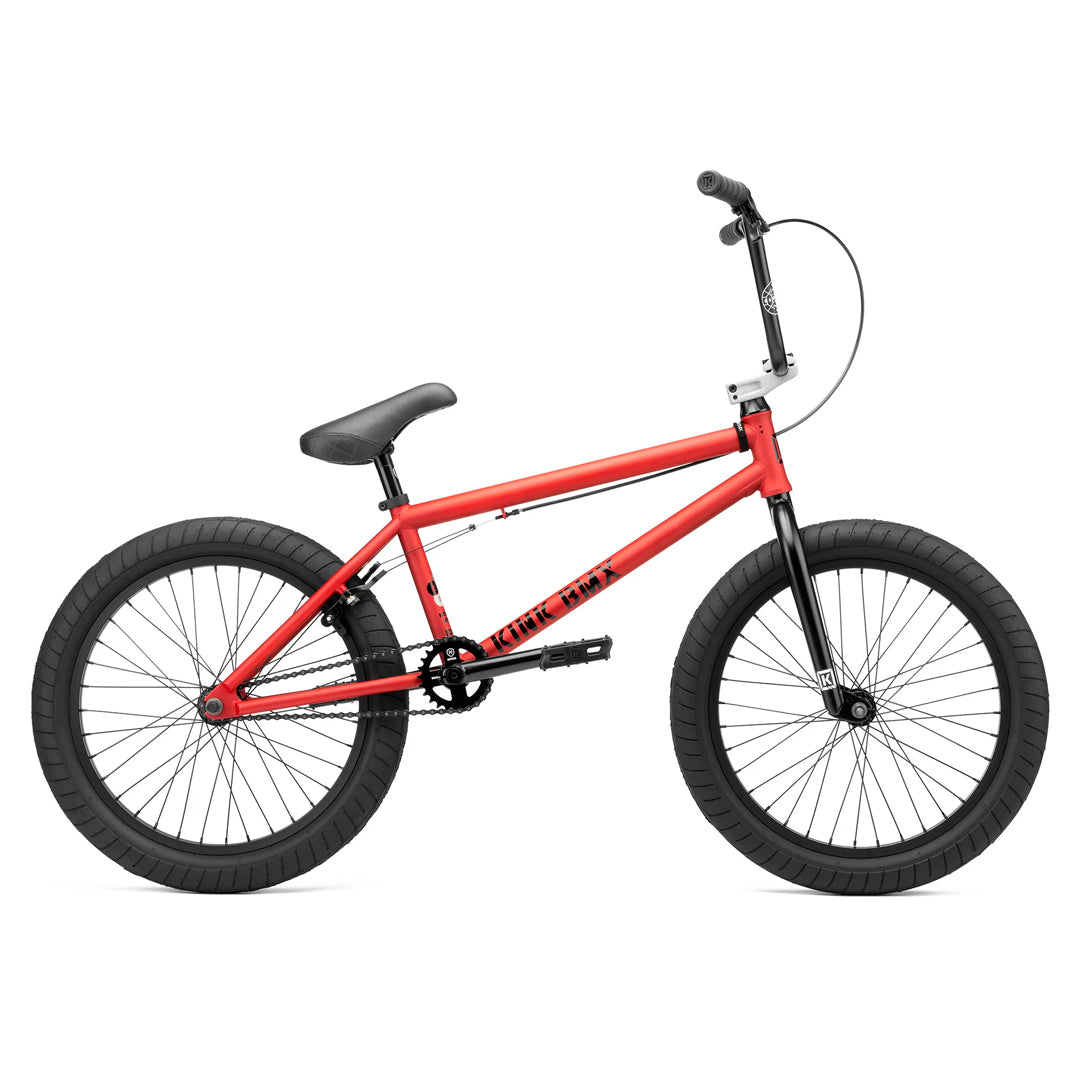

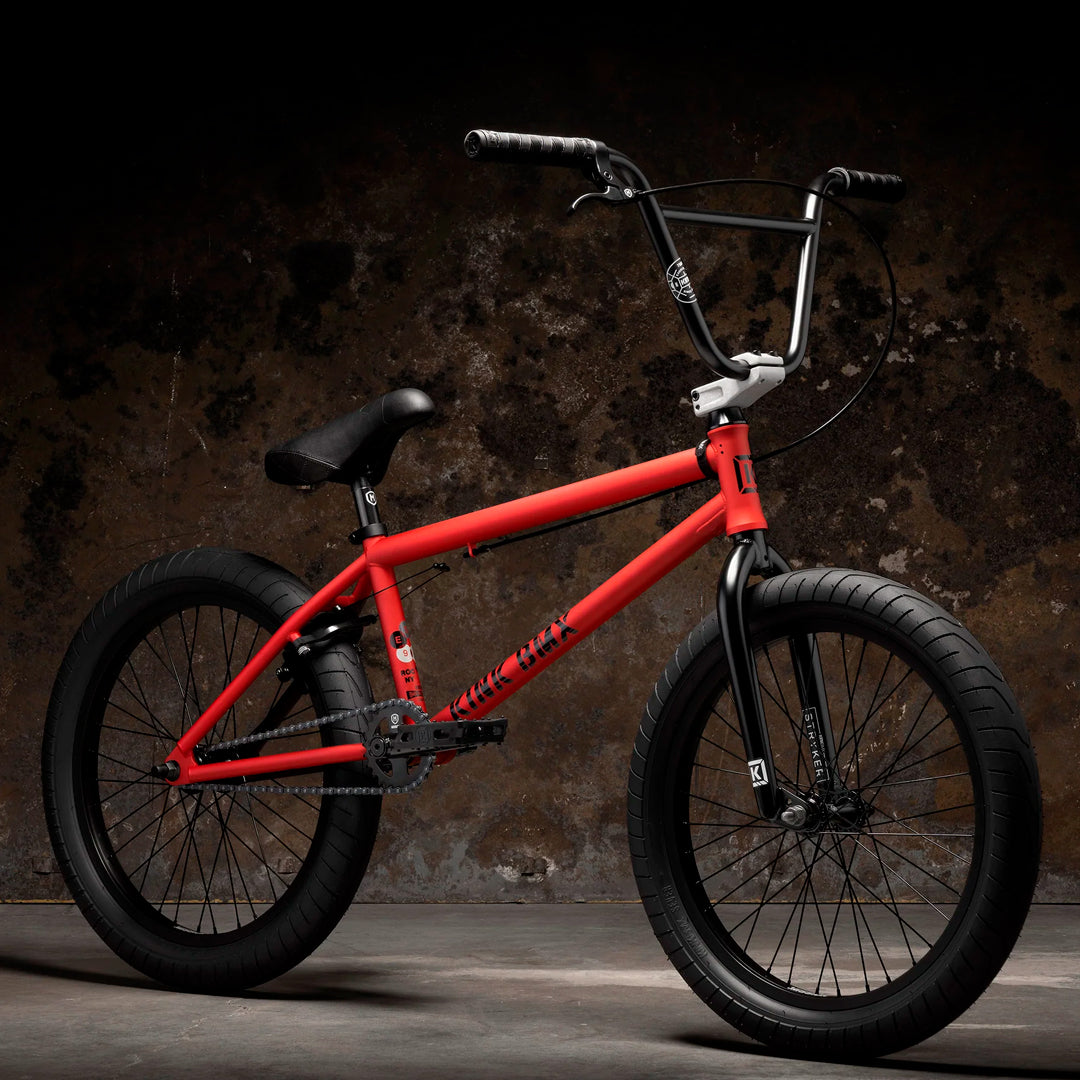

BICICLETA KINK GAP MATTE BAKED RED

GEOMETRY

Toptube Length 20.5"

Chainstay Length 13.25"

Headtube Angle 75°

Seattube Angle 71°

Standover Height 9″

Bottom Bracket Height 11.6"

Fork Offset 32mm

TECH SPECS

FRAME Kink Gap 100% 4130 Chromoly HT, TT and DT PEDALS Kink Hemlock

FORK Kink Stryker 4130 Chromoly Steerer, Tapered Fork Legs CHAIN Mission 410

BARS Kink T900 9" 100% 4130 Chromoly SPROCKET Mission Breach 25T

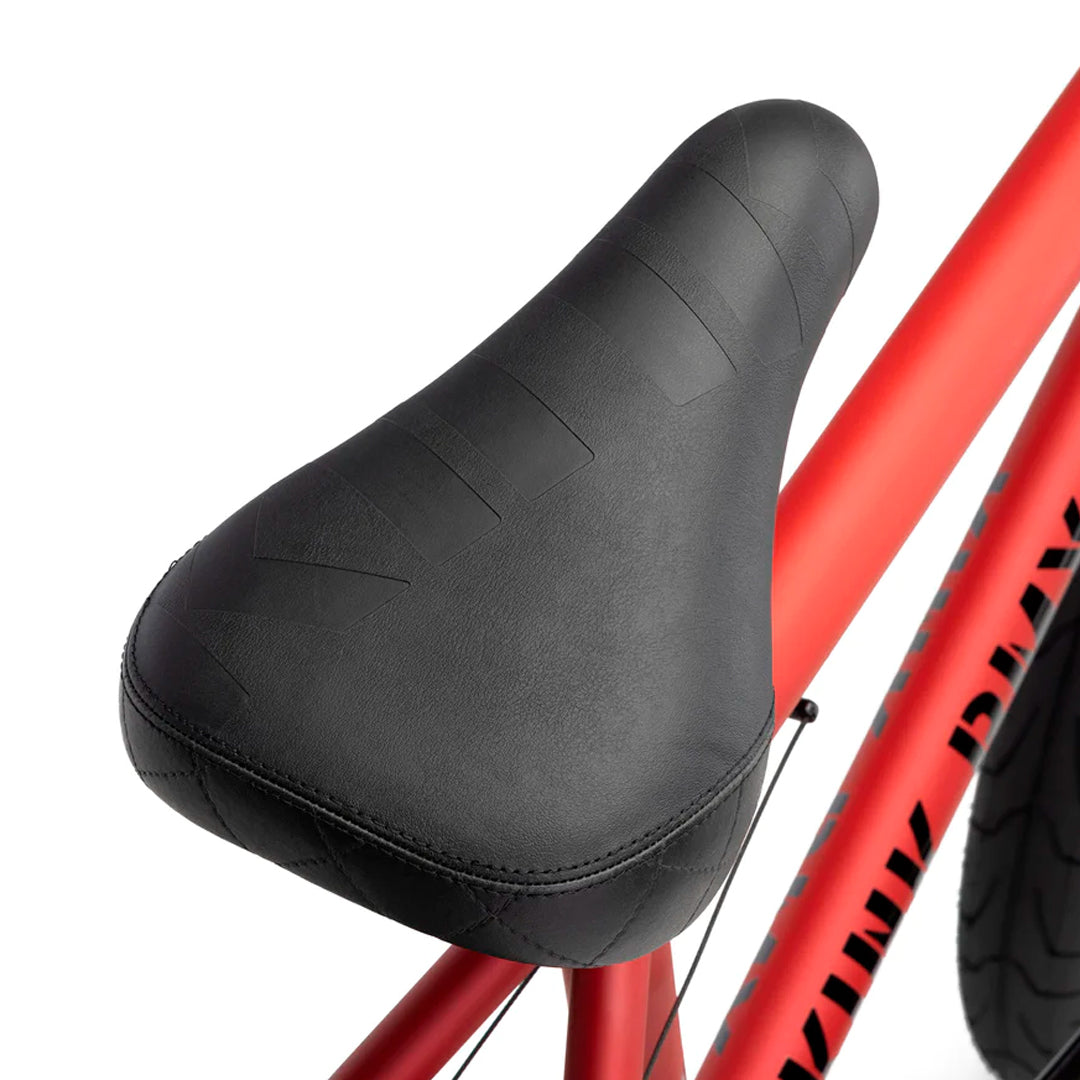

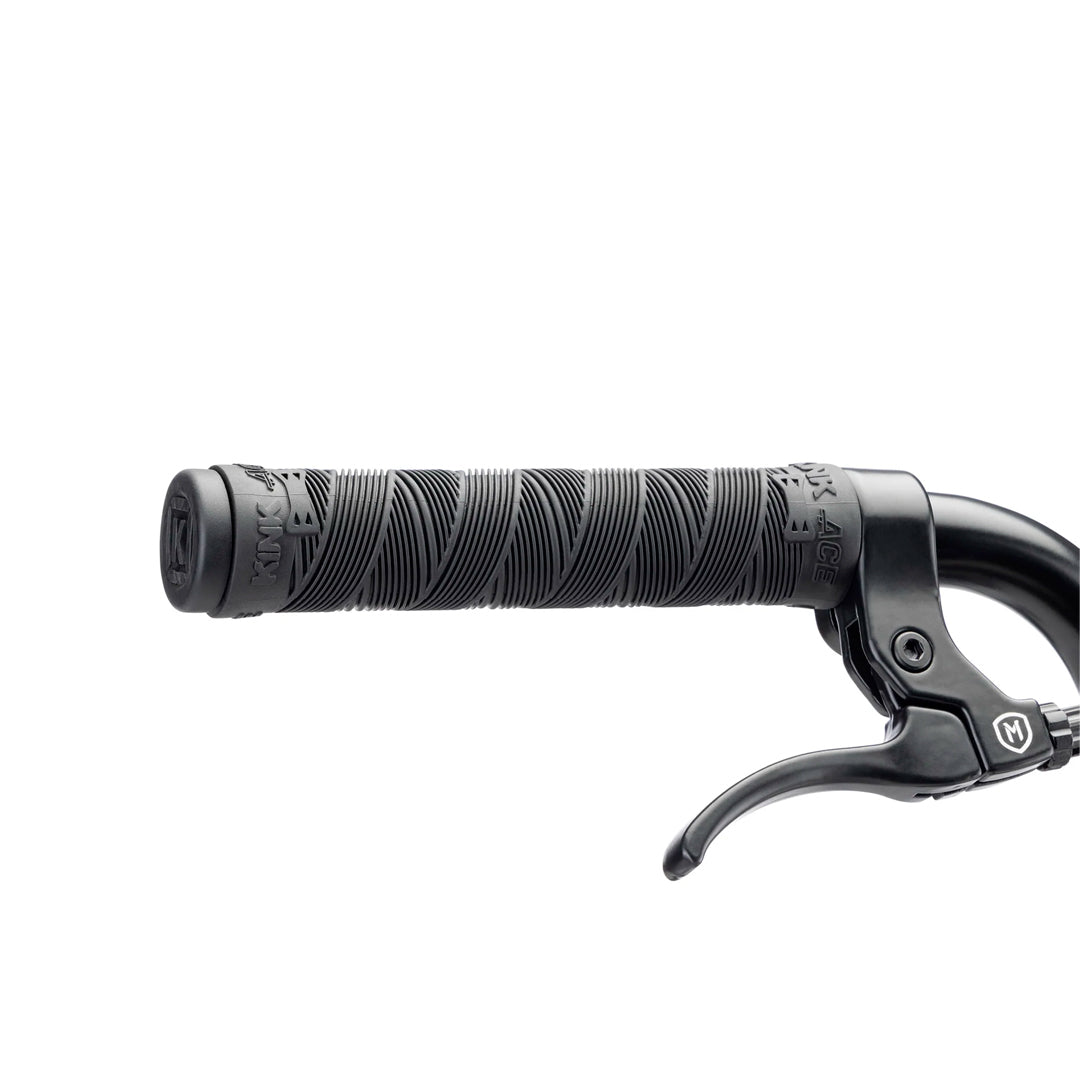

GRIPS Kink Ace Flangeless SEAT Kink Plymouth/Bomber Stealth

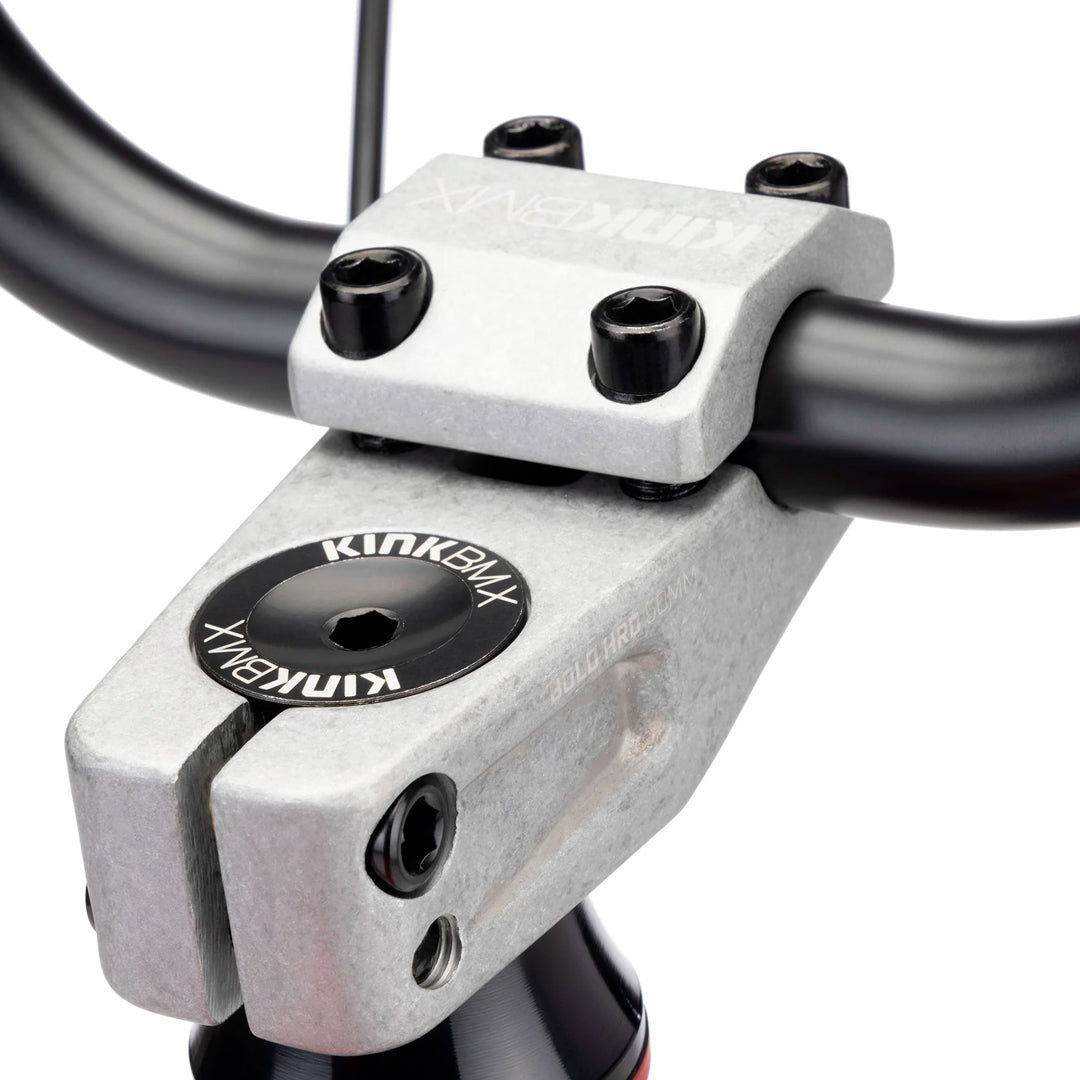

STEM Kink Bold HRD 50mm SEAT POST Mission Stealth

HEADSET Mission Sealed Integrated (41.8 x 45) SEAT CLAMP Mission Slim Clamp

BRAKE LEVER Mission Token FRONT HUB Mission Covert Unsealed 3/8″ Axle

BRAKE CABLE Mission L3 Linear REAR HUB Mission Engage Sealed Cassette 14mm

BRAKES Mission Cease V2 DRIVER 9T

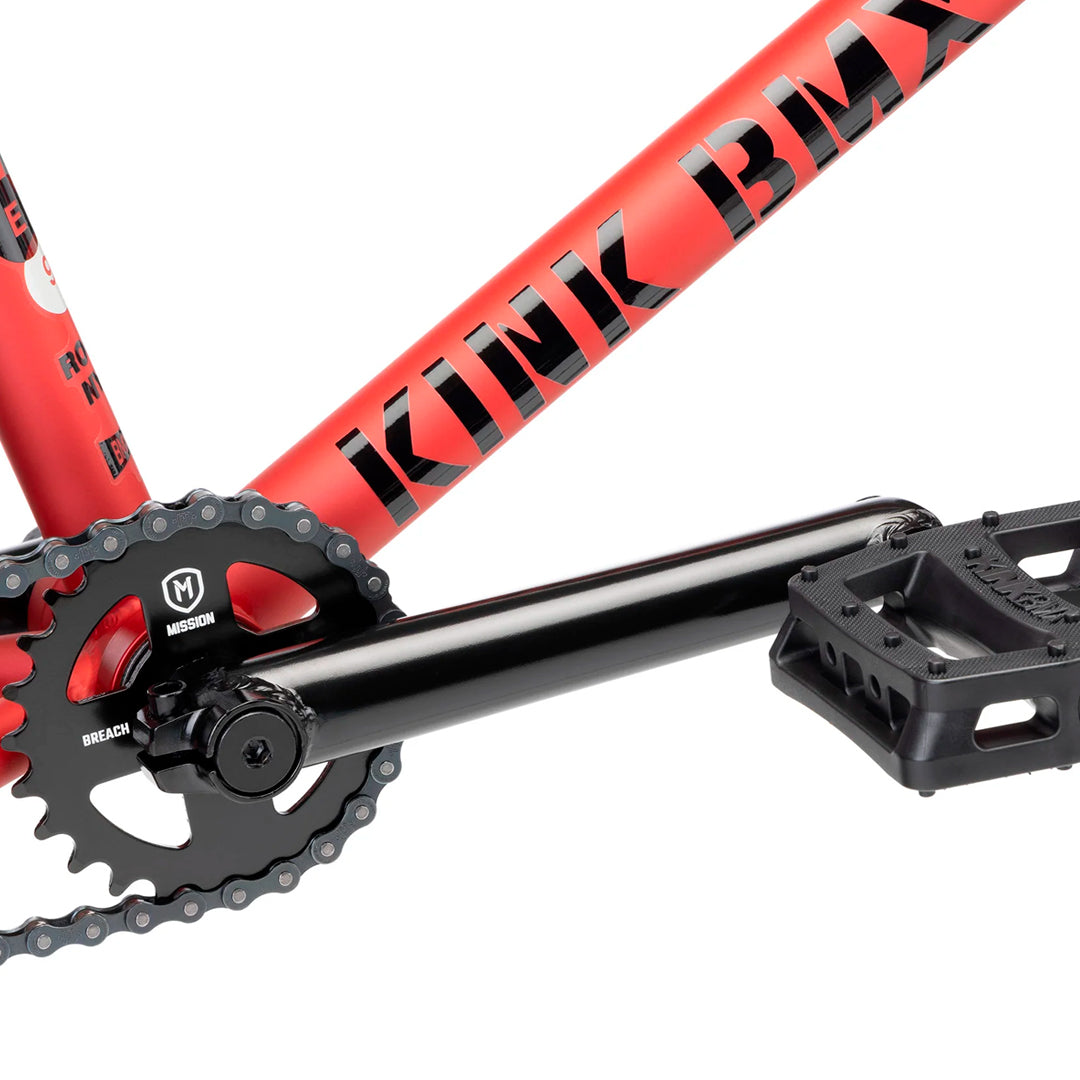

CRANKS Kink Ridge 3pc Tubular Chromoly 170mm – 8 Spline RIMS Mission X7

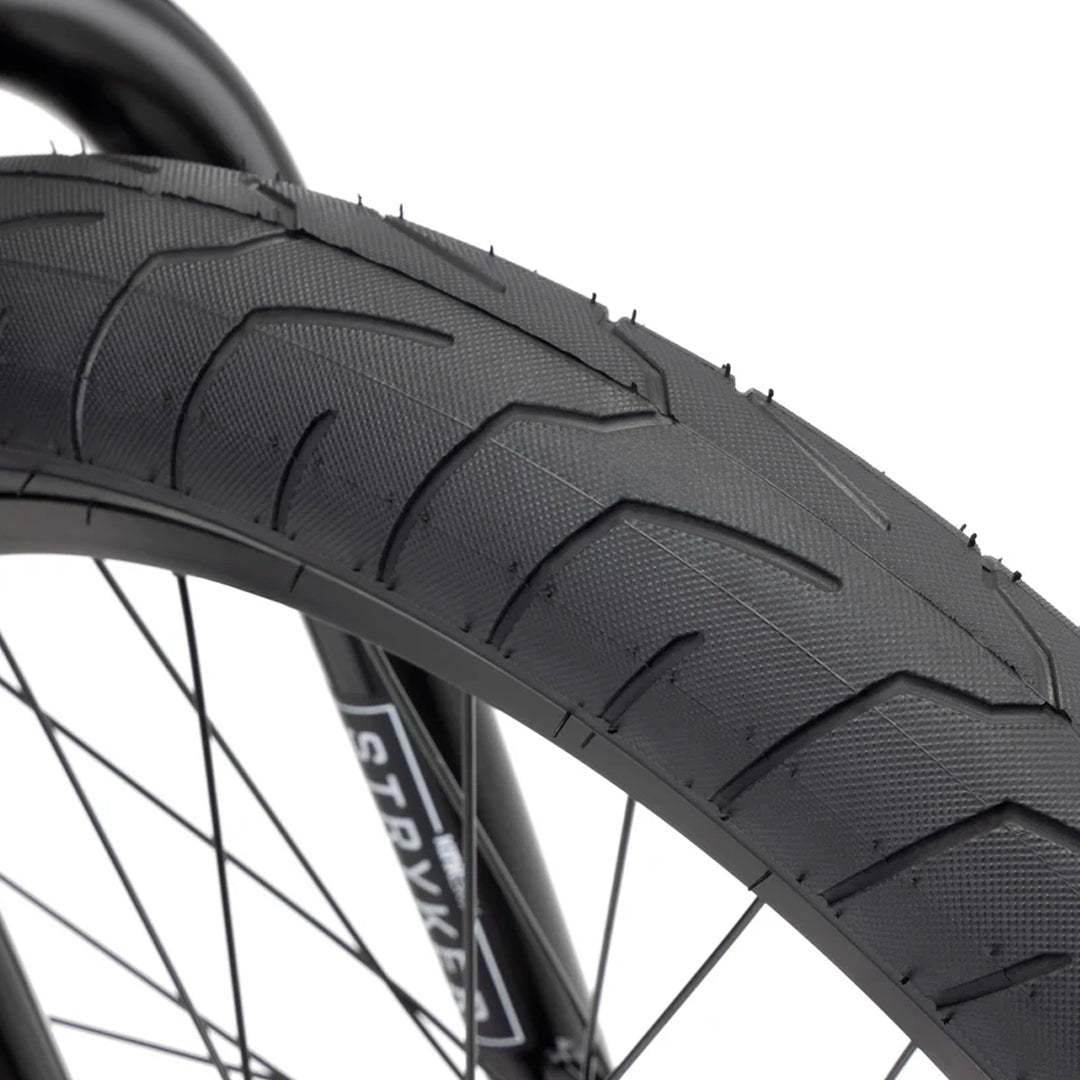

BOTTOM BRACKET Sealed Mid 19mm TIRES Kink Sever 2.4"

PEGS N/A WEIGHT 27lb 1oz
